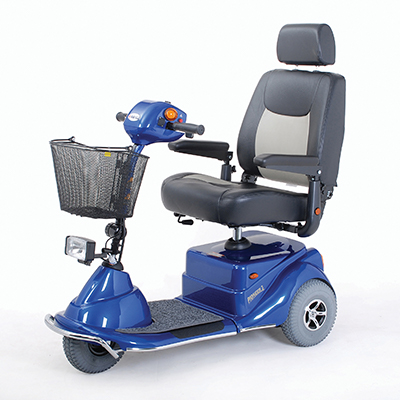

Pioneer 3 -S131

Pioneer 3

Weight capacity: 400lbs
High-torque drive train allows for increased power and maneuverability
Adjustable tiller to fit various arm lengths and collapses for easy storage
Dashboard control panel for ease of use
Flip-up armrests with height, width & angle adjustable
Steel bumper protects shroud from scratches and serves as a lift handle
Limited lifetime warranty on frame
One piece frame design/ Sliding captain seat
Colors available: Red
Options: oxygen tank holder, cane & crutch holder, walker holder, canopy, foldable rear basket

Product Description

DIMENSIONS	S131	TECHNICAL SPECS
Seat Width	20″	Max Speed	up to 5mph
Seat Depth	20″	Range	up to 18 miles
Seat Height	16″-19″	Turning Radius	39″
Armrest Height		Ground Clearance	4″
Backrest Height	22″	Motor	DC 24V, 250W
Min. Footrest Extension		Controller	Dynamic Rhino 70A
Max. Footrest Extension		Battery	12V/U1(34AH) x 2pcs or group 22
Overall Length	46″	Charger	5A off-board
Overall Height	45.5″	Gradient	8°
Overall Width	23″	Casters	10″ pneumatic tires
Folded Width		Drive Wheels	10″ pneumatic tires
Total Weight		Brakes	intelligent, regenerative, electromagnetic
Capacity
